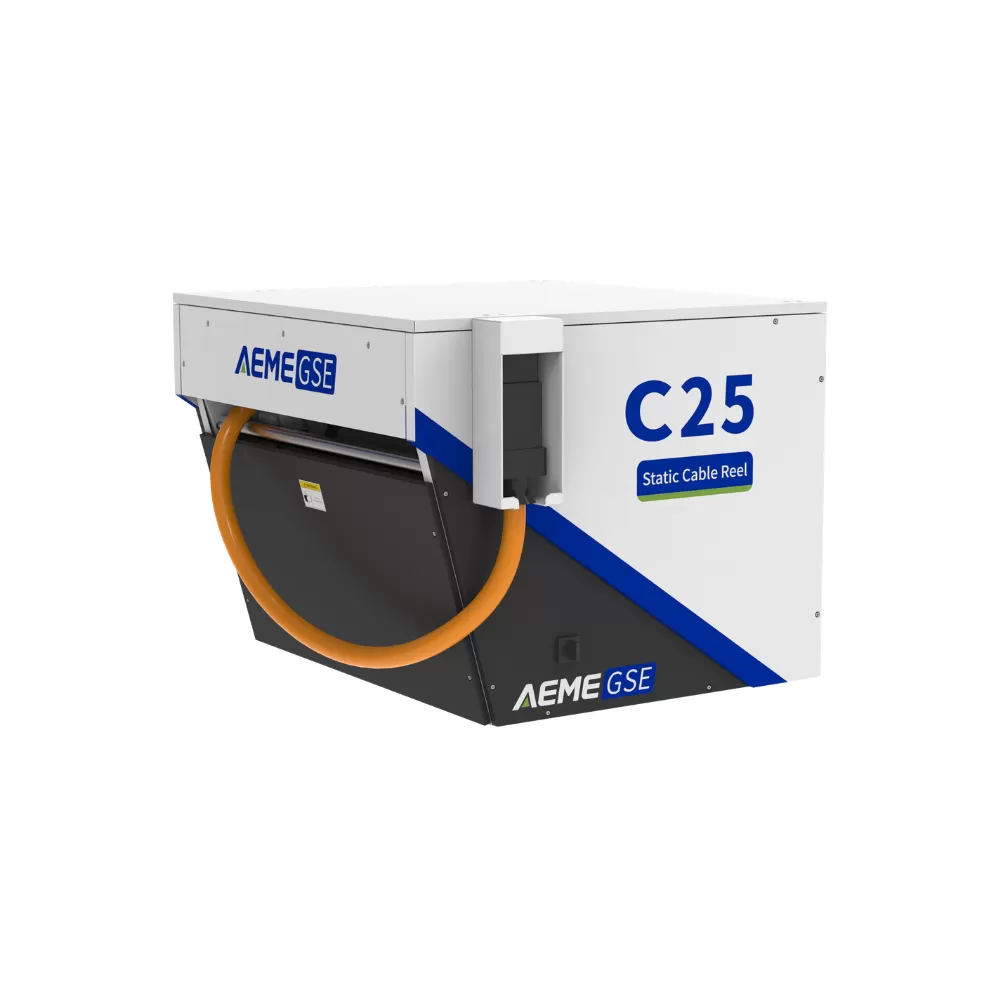

25-Meter Cable
Our S25 Cable Reel is ideal for use with solid state ground power units. It enables efficient and safe cable handling, helping maintain organized and reliable power connections on the apron.
Easy M&O
Modular design allows integration with 400Hz bridge-mounted solid-state GPUs.
Limit Protection
Built-in limit sensor prevents over-retraction or over-extension of the cable.
Variable Frequency Drive
Variable frequency speed control ensures smooth cable retraction and extension.
| Rated voltage | 380V |
| Rated frequency | 50Hz |
| Connection mode | 3P+N+PE |
| 400HzAC | |
| Rated voltage | 115V/200V |
| Rated capacity | 90kVA |
| Rated frequency | 400Hz |
| Rated current | 261A |
| Protect | |
| Take-up terminal limit protection | Available |
| Pay-off terminal limit protection | Available |
| 400Hz pluginsertion interlock protection | Available |
| Overcurrent protection | Available |
| Overvoltage protection | Available |
| Overload protection | Available |
| Environment | |
| Operating temperature | -20℃~55℃ |
| Relative humidity | 0～100%(no condensation) |
| Structure | |
| Dimensions (L*W*H) | 1050*1000*800mm |
| Weight | 350 kg(with 25m cable) |
| Other | |
| Protection degree | IP54 |
