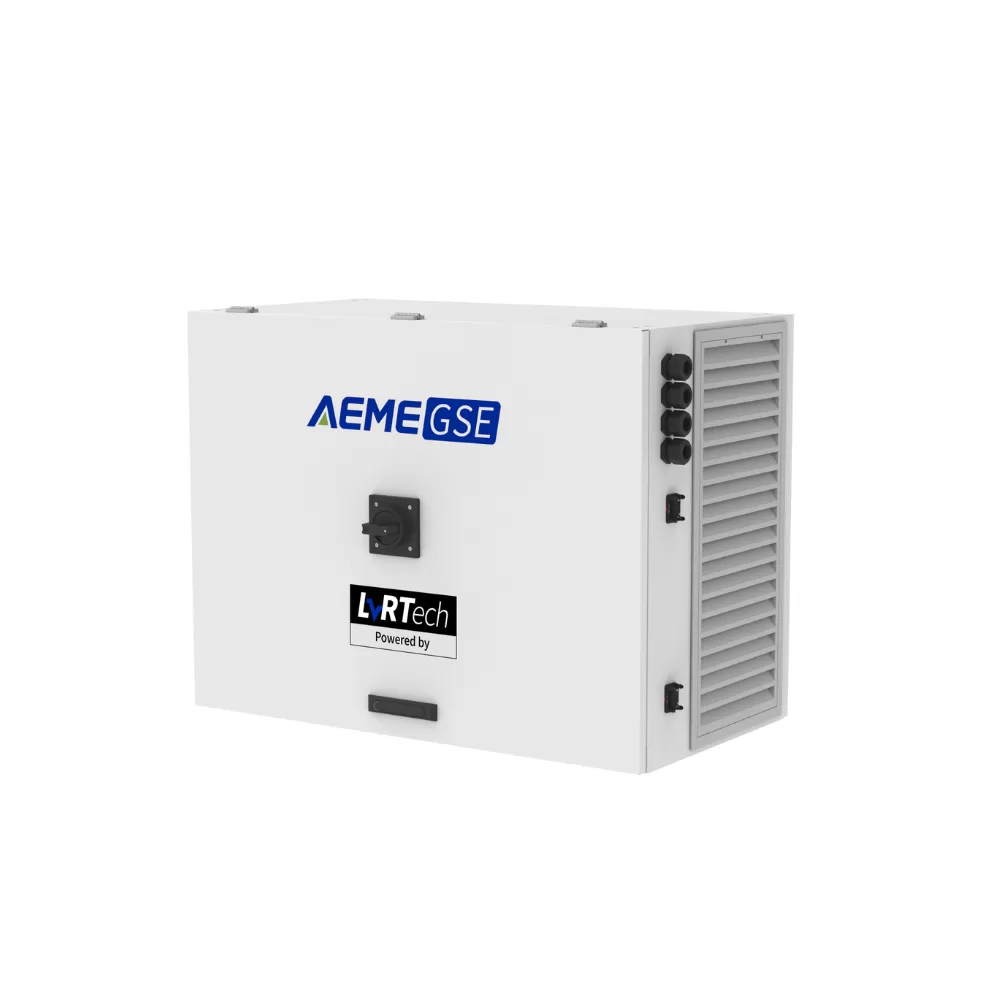

The S400 is a compact solid-state GPU designed to deliver consistent 400Hz power supporting flexible installations. The S400 (horizontal) can be integrated with our S25 25-meter cable reel and mobile chassis. As a key component of a modular all-in-one system, It is widely applicable to both remote and contact stands, as well as bridge-mounted installations.
Modular, smart, and safe
Flexible Installation & Easy Maintenance
Compact, modular architecture enables flexible deployment and simplifies maintenance and operations.
Comprehensive Protection
Includes over/under voltage, overcurrent, and frequency protections to ensure safe and reliable operation.
Cloud-Based Management
Connected to a cloud platform for digital monitoring, full-process diagnostics, and precise fault detection, enhancing overall operational efficiency.
| Product model | AGSP-ASS-090H-H |
| AC Input | |
| Rated voltage range | 380VAC |
| Rated frequency range | 50/60Hz |
| Connection mode | 3P+N+PE |
| Power factor | ≥0.99 |
| Surge current | No |
| 400Hz Output | |
| Rated capacity | 90kVA |
| Rated frequency range | 400Hz |
| Power factor | 0.7~1 |
| DC component | ±0.1V |
| Voltage THD | <2% |
| Crest factor | 1.414±3% |
| Phase voltage unbalance | <1% |
| Steady-state frequency | 400Hz |
| Phase shift | 120°±0.1° |
| Overload | |
| 110% | Lasts 60 min |
| 125% | Lasts 10 min |
| 150% | Lasts 60s |
| 200% | Lasts 30s |
| 300% | Lasts 10s |
| 400% | Lasts 1S |
| Protect | |
| Level of protection | IP55 |
| Uninterrupted power transmission | Available |
| Output over/under voltage protection | Available |
| Overload protection | Available |
| Internal over-temperature protection | Available |
| Output short circuit protection | Available |
| Output N line disconnection protection | Available |
| Output N-line voltage monitoring | Available |
| Leakage current monitoring | Available |
| Input over/under voltage protection | Available |
| Input over/under frequency protection | Available |
| Input overcurrent protection | Available |
| Efficiency | |
| Compound efficiency | ≥91% |
| Environment | |
| Operating temperature | -20°℃~55℃ |
| Relative humidity | 0～100%(no condensation) |
| Noise level | <70dB |
| Horizontal Structure | |
| Dimensions (L*W*H) Weight Vertical Structure | 1050*580*800mm 398kg |
| Dimensions(L*W*H) | 800*580*1450mm |
| Weight | 420kg |
